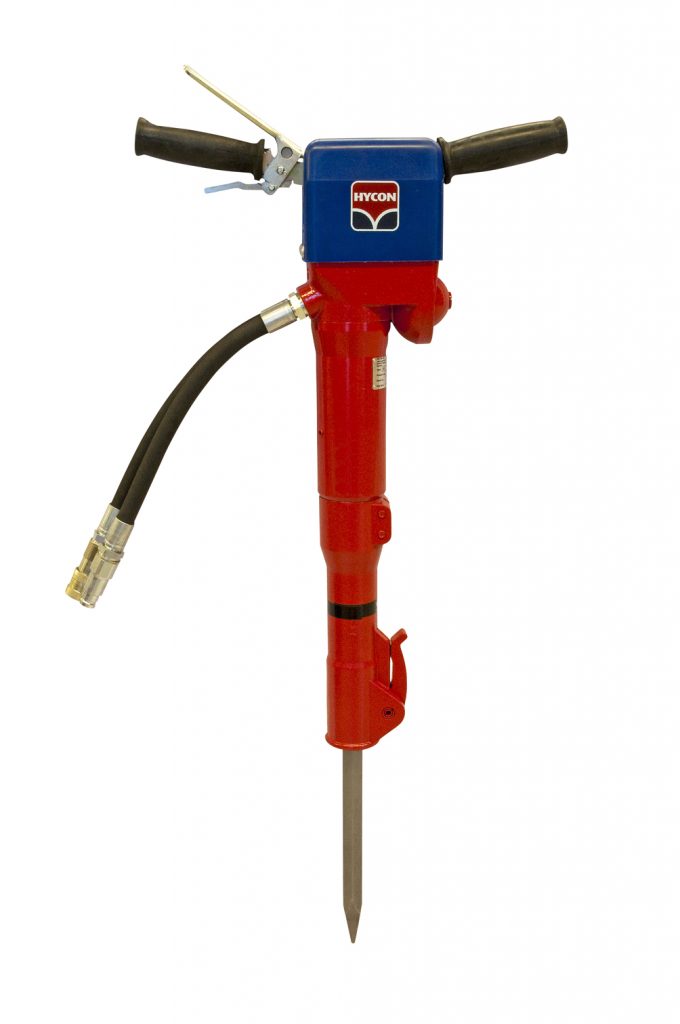

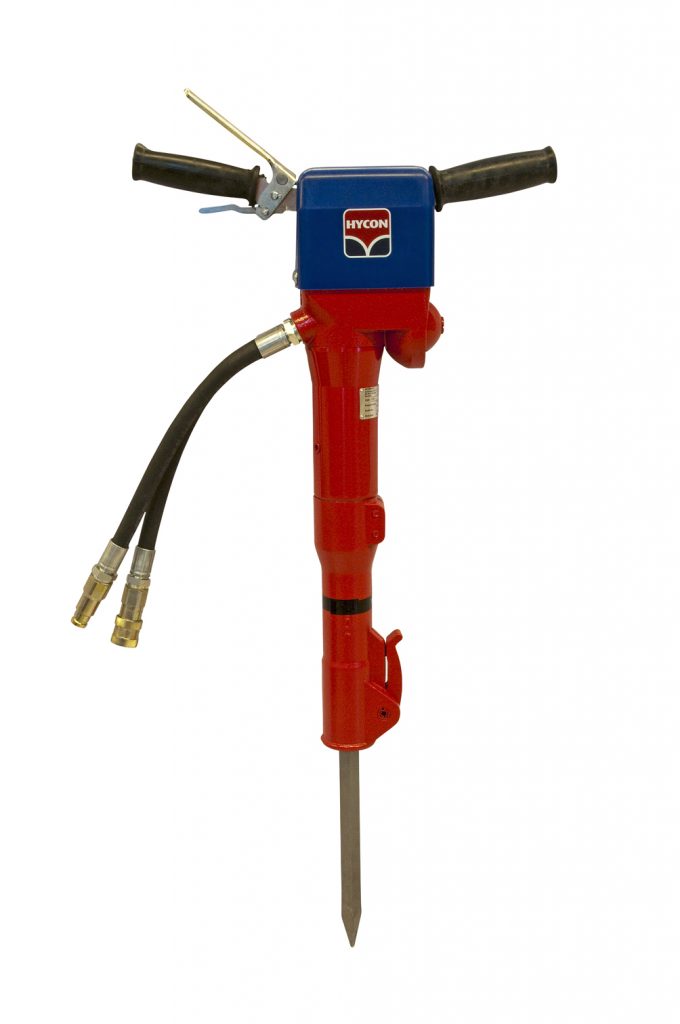

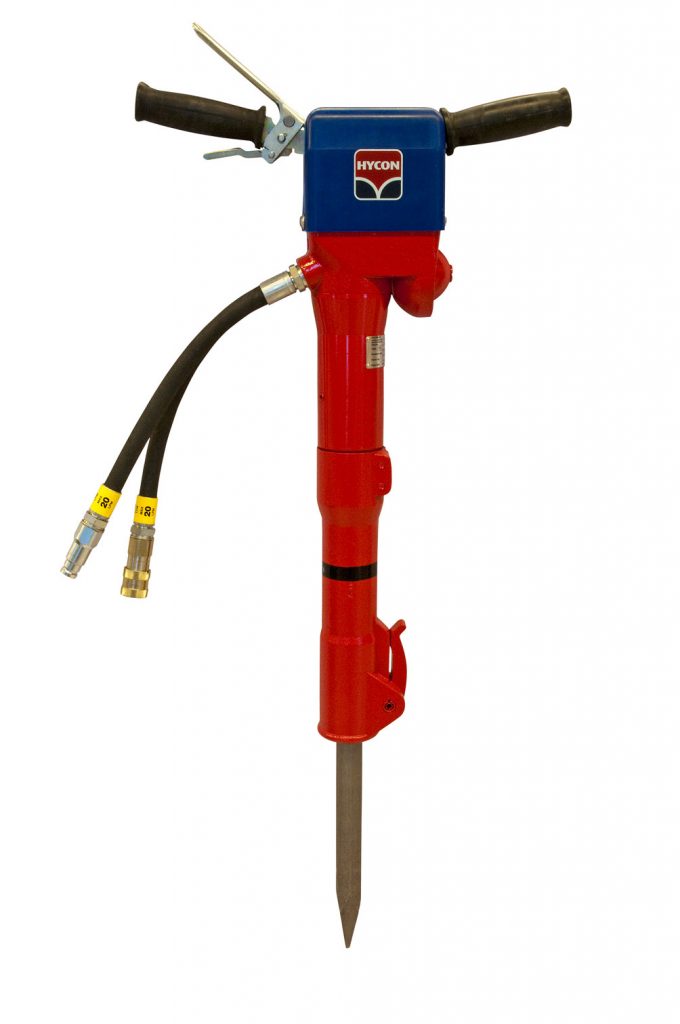

Handheld Hydraulic Rock Drill
Product Features
The HYCON HH series is the result of the strongest and most modern design on the market. Because our hydraulic quality breakers contain only two moving parts, they provide minimal wear and therefore much lower operating costs.
The HYCON HH series is equipped as standard with the world’s best vibration isolation system, the HYCON PROLINE arm. With a very low vibration level of 2.8 m/s² (HH20RV), this lever provides unparalleled comfort to the operator and thus the hammer can be used efficiently for 8 hours a day (EC Directive of 1 July 2005).
The robust design and superior component quality of the HYCON HH series are synonymous with long service life, even under extreme operating conditions.
Technical Data
| HH10RV | HH15 | HH20 | HH23 | H25 | HH27 | BR67 | BR87 | |
| Oil Flow lt/dk | 20 | 20 | 20 | 20/30 | 20/30 | 30 | 20/30 | 20/30 |
| Weight kg | 9.9 | 15.3 | 22 | 23-May | 25-Aug | 27-Apr | 33 | 34 |
| Working pressure Bar | 100/160 | 100/160 | 110/160 | 120/160 | 120/160 | 130/160 | 105/140 | 105/140 |
| Vibration level 1 min – m/s2 | 2100 | 1830 | 1560 | 1380 | 1380 | 1260 | 1300 | 1300 |
| 9,6 | 6,6 | 6,8 | 8 | 9,4 | 10,7 | 10,8 | 10,8 | |
| Drill steel shank size mm hex | 19×50 | 22×82 | 25×108 | 25×108 | 32×160 | 32×160 | 32×160 | 32×160 |
