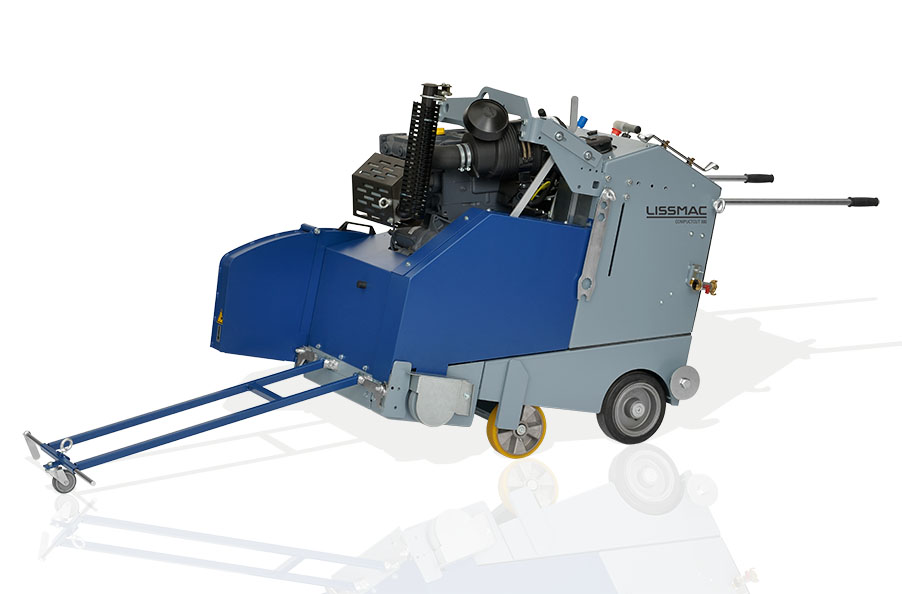

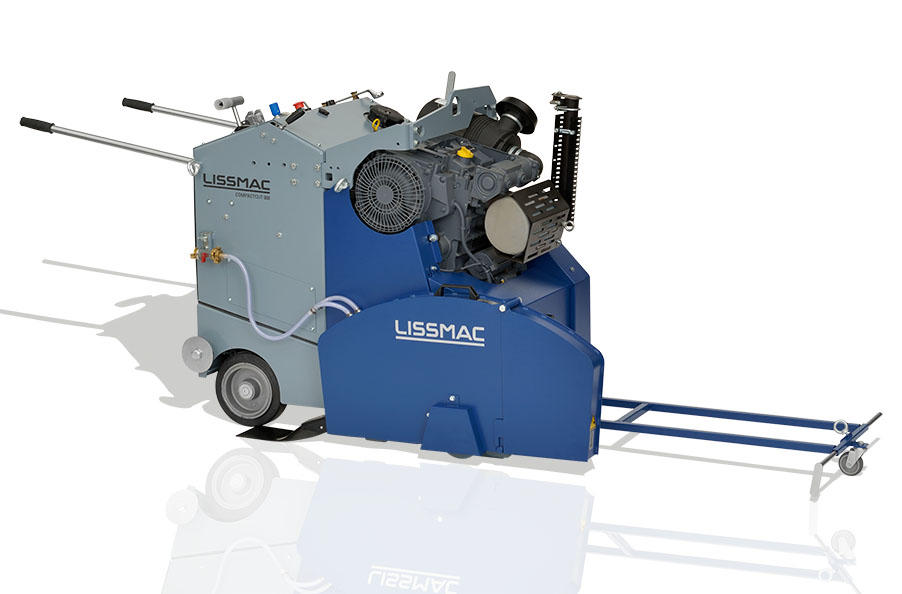

FLOOR SAW COMPACTCUT900D
Product Features
Demands borne from experience in the field have been taken into account with the development of this agile power house. Tried and tested by the professionals, the floor saw is impressive in its price/performance ratio, its robust mechanics and ease of operation.
Description
- Powerful floor saw with scissor technology

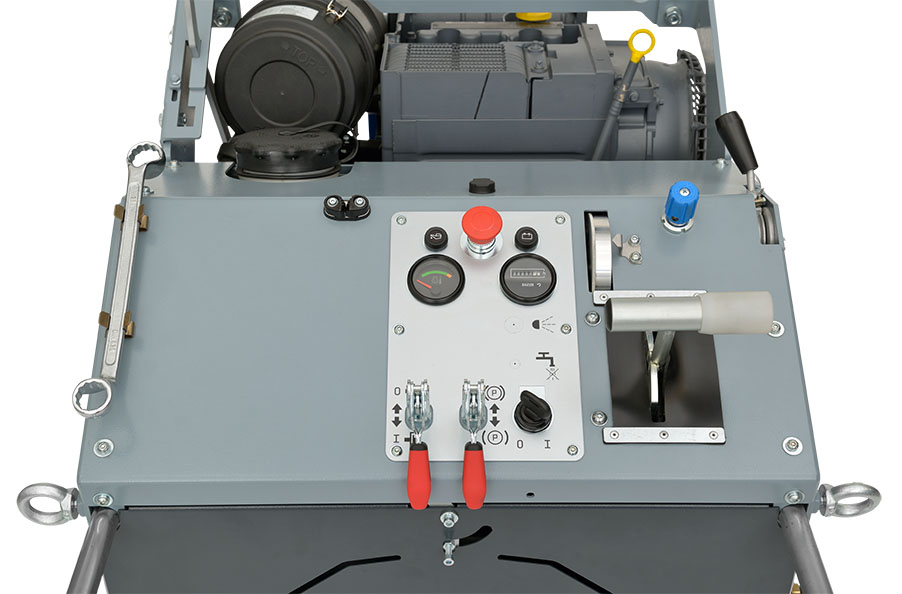

- Simple arrangement of the operating elements and a compact multifunctional display facilitate the easy to learn and intuitive operation
- Drive via Hydrostat guarantees a smooth and controlled operation of the machine
- Optimum power transfer with high performance V-belts
- Warp-resistant sheet frame construction
- The compact design and balanced chassis permit easy manoeuvring around the construction site
- The low centre of gravity ensures a precise saw cut
- Very good straight cut thanks to the adjustable rear axle
- Same track of the wheels- large- dimensioned wheels
- Lifting and lowering of the saw blade is controlled electro-hydraulically
- Height adjustable handles allow for ergonomic operation
- Rapid changeover from left to right-hand cutting

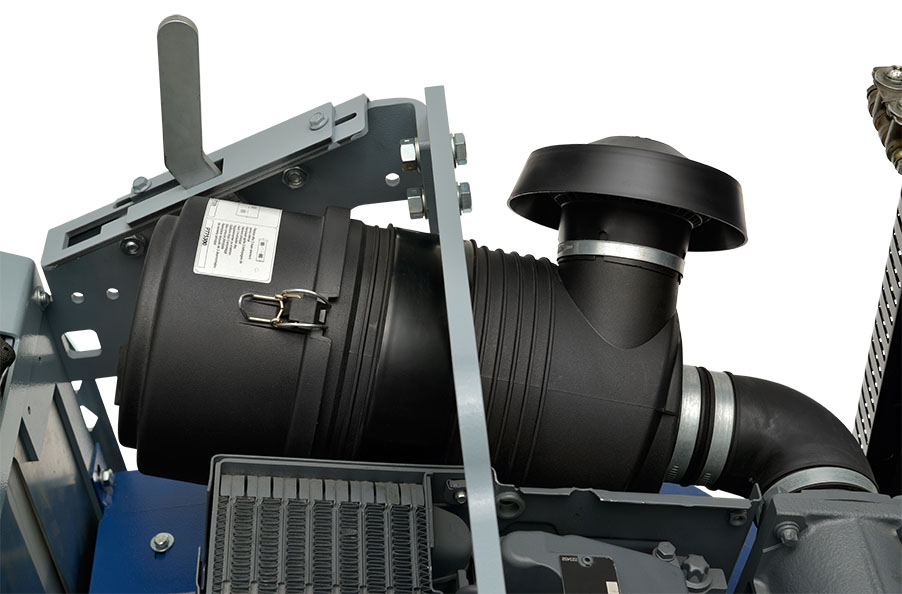

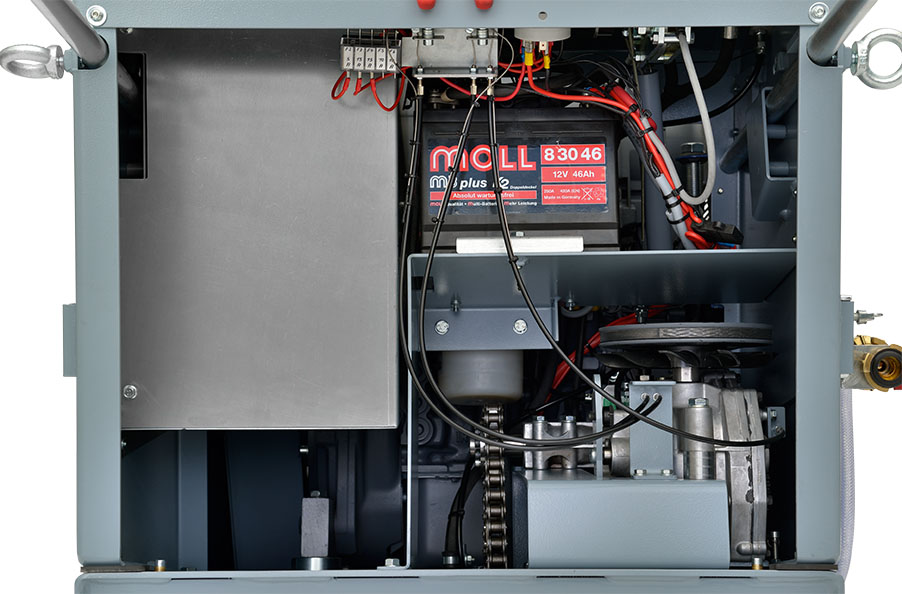

- Easy access for prevalent maintenances (air filter, battery, oil filter, fuel filter) due to the perfect drive unit position
- Parking brake, working hour counter and neutral (free-wheeling) mode come as a standard feature
Technical Data
COMPACTCUT 900 D
| cutting depth max. | 320 mm |
| cutting depth setting | electrohydraulic with depth gauge |
| saw blade Ø max. | 800 mm |
| saw blade holder | 25.4 mm |
| drive motor | DEUTZ diesel 2-cyl. |
| output power max. | 22.3 kW, 30 hp |
| saw blade speed | 1650 1/min |
| dimensions (L/W/H) | 1370/820/1120 mm |
| weight | 657 kg |
